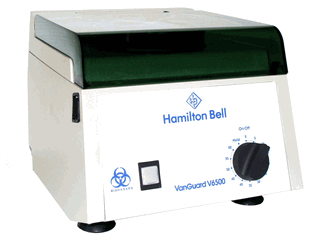

Hamilton Bell VanGuard V6500 Tabletop Centrifuge, 6x15ml Angled Rotor, 3400rpm, Mech. Timer, V6500

Hamilton Bell VanGuard V6500 Tabletop Centrifuge, 6x15ml Angled Rotor, 3400rpm, Mech. Timer, V6500
BrandHamilton Bell
Product CodeHB-V6500
AvailabilityUsually ships in 3-4 Business Days
MSRP : $450.00
You Save 15%
Out of Stock

Product Description

Hamilton Bell VanGuard V6500 Tabletop Centrifuge, 6x15ml Angled Rotor, 3400rpm, Mech. Timer, V6500

Hamilton Bell's VanGuard Compact Centrifuge offers the protection needed in today's healthcare environment when operated in accordance with the instructions herein. The transparent polycarbonate protective cover permits visual inspection of tubes. When the cover is locked closed, the rotor is contained in a sealed compartment.

With the cover locked closed, the VanGuard provides integral aerosol and splash protection to minimize exposure to infectious disease. The VanGuard centrifuge should only be operated with the cover locked closed and with a balanced load.

Hamilton Bell VanGuard Centrifuge is designed specifically for use in physicians offices and clinical laboratories. The VanGuard performs separation procedures for blood, fecal, and high density sedimentation. The VanGuard is also at home in the biological, chemical, and industrial laboratory where fast separation of different densities is desirable.

All VanGuard centrifuges are available with either 10ml or 15ml hardened aluminum shields. Please specify from the dropdown menu, above

      Model Description
      3400rpm Fixed Speed, on / off switch, constant speed brushless induction motor, six place rotor
      V6500 VanGuard Centrifuge 3400rpm Fixed Speed, 60 minute interval timer operation, constant speed brushless induction motor, six place rotor

Find replacement part guide for VanGuard 6000/6500, HERE. All the parts are available under the "Accessories" tab.

Hamilton Bell VanGuard V6000/6500 Operating


NOTE:We are an authorized distributor of Hamilton Bell Van Guard Benchtop Centrifuges, Replacement Parts and Accessories. We are located in Long Island New York. If you can not find any Hamilton Bell products, parts or accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...


  • Six-place constant speed unit, compact size, UL and CSA approved.
  • Integral aerosol and splash protection.
  • New V7000 rotor with LIFETIME WARRANTY.
  • Automatic shutdown when cover is opened.
  • Maintenance-free brushless induction motor.
  • Removable line cord.
  • Specimen friendly low ambient temperature.
  • Motor meets CSA standards.
  • UL and CSA approved.
  • 10 ML OR 15 ML hardened aluminum shields.


V6000 V6500
Rotational Speed
Maximum rpm 3400 ( +/- 100) 3400 ( +/- 100)
Max cent force (rcf) 1318 1318
Setting fixed fixed
Total volume 90 ml 90 ml
Shield length - 15 ml 11.5 cm 11.5 cm
Shield length - 10 ml 10 cm 10 cm
Shield diameter (both) 2 cm 2 cm
Settings N / A 1 - 60 minutes
Accuracy: 60 minutes N / A + / - 5%
:less than 60 minutes N / A + / -7 to 10%
Heads available fixed angle (40%) fixed angle (40%)
Radius 10.2 cm ( 4.06") 10.2 cm ( 4.06")
Size (H x W x D) 9"x 11" x 12" 9"x 11" x 12"
Shipping Weight 16 lb. 16 lb.
Voltage 110 V - AC 110 V - AC
Frequency 60 Hz 60 Hz
Current .95 A .95 A
Safety Listings
UL 3B60 3B60
CSA (motor only) LR6319 LR6319
Warranty 1 year 1 year

Packaging Content

Package Includes;
  • VanGuard V6500 Centrifuge
  • V7000 6x Rotor/w Lifetime Warranty
  • 6 x 10 or 15ml Tube shields
  • Power Cord
  • Owner's Manual

Warranty / Return Policy

Comes with 1 year manufacturer's warranty. The V7000 rotor comes with a lifetime warranty through Hamilton Bell.
