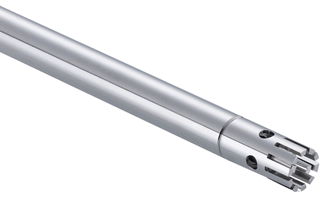

IKA S 25 KV - 18 G Dispersing Element, Vol. Range 10 - 1,500ml, 2348000


IKA S 25 KV - 18 G Dispersing Element, Vol. Range 10 - 1,500ml, 2348000
BrandIKA Works
Product CodeIKA-2348000
AvailabilityUsually ships in 3-4 business days

MSRP : $2,940.00
$2,535.75
You Save 14%
Qty:

Product Description

IKA S 25 KV - 18 G Dispersing Element, Vol. Range 10 - 1,500ml, 2348000


The IKA S 25 KV-18 G is a high-performance dispersing element for the T 25 digital ULTRA-TURRAX disperser, designed for high-speed dispersing, emulsifying, and homogenizing of small to medium batches. Its FFPM/SiC seal and stainless steel construction handle solvents and abrasive media up to 220 °C.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O) 0.01 - 1.5 l
Stator diameter 18 mm
Rotor diameter 12.7 mm
Gap between rotor and stator 0.25 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 16.6 m/s
Immersion depth 40 - 225 mm
Shaft length 270 mm
Material in contact with medium FFPM, SIC, AISI 316L, AISI 302
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 220 °C
Sterilization methods all methods
Vacuum 1 mbar
Pressure max. 6 bar
Ultimate fineness, suspensions 10 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
FDA conformity yes
Weight 0.5514 kg

Product Documents

PDFProduct Data Sheet  |  PDFProduct Manual
