Brymill MVE LAB 20 Liter Liquid Nitrogen Storage Tank, BRY501-20


live chat service provider
Brymill MVE LAB 20 Liter Liquid Nitrogen Storage Tank, BRY501-20
BrandBrymill Cryogenic Systems
Product CodeBRYMILL-BRY501-20
AvailabilityUsually ships in 2-3 Business Days
ConditionBrand New

MSRP : $1,700.34
$1,416.95
You Save 17%
Qty:

Product Description

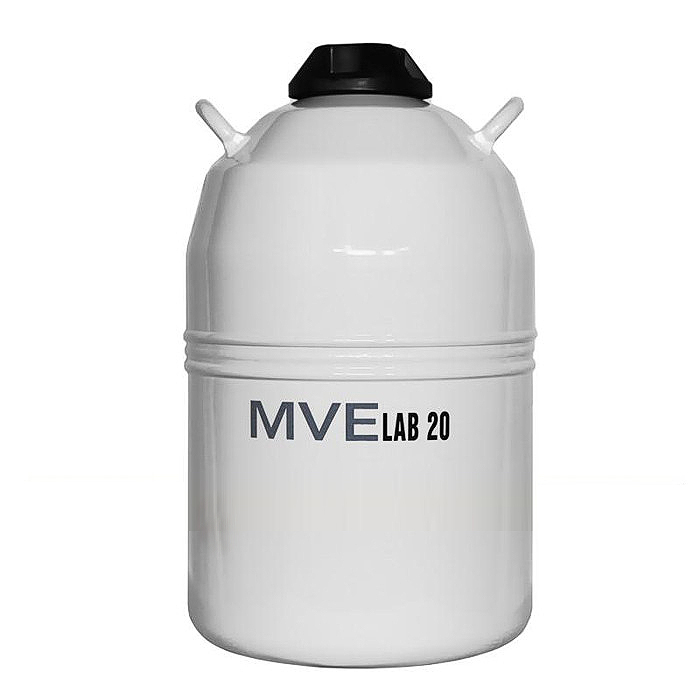

Brymill MVE LAB 20 Liquid Nitrogen Storage Tank, 20 Liter, BRY501-20


Brymill MVE LAB 20 Liquid Nitrogen Storage Tank, 20 Liter, BRY501-20 The Chart/MVE LAB Series cryogenic liquid dewars get their name from their acceptance in laboratories and medical facilities worldwide. These high-efficiency, super insulated dewars are the most convenient, economical way to store and dispense liquid nitrogen. Many lab units can be fitted with pouring spouts, pressurized dispensing devices or dipper to aid in the transfer of liquid nitrogen.

NOTE:We are an authorized distributor of Brymill Cryogenic Equipment. We carry the full line of Brymill Cryosprayers, Liquid Nitrogen Storage Tanks, Withdrawal Equipment, Replacement Parts & Accessories. We are located in Long Island New York. If you can not find any Brymill products on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • Designed for large capacity storage
  • Low liquid nitrogen consumption
  • Convenient lightweight package
  • Durable, tamper-proof lid design
  • High strength neck tub reduces liquid nitrogen loss
  • Strong light weight aluminum construction
  • Advanced chemical vacuum retention system
  • Spider design on platform for easy retrieval and insertion of product canisters

Specifications

MVE LAB 5 MVE LAB 10 MVE LAB 20 MVE LAB 20SC MVE LAB 30 MVE LAB 50
LN2 Capacity 5 Liter 10 Liter 20 Liter 20 Liter 30 Liter 50 Liter
Static Evaporation 0.15lt / day 0.18lt / day 0.18lt / day 0.14lt / day 0.22lt / day 0.49lt / day
Static Hold Time 4-5 Weeks 6-8 Weeks 8-12 Weeks 220 Days 14-16 Weeks 14-17 Weeks
Neck Opening 2.18" / 56mm 2.18" / 56mm 2.18" / 56mm 2.18" / 56mm 2.50" / 64mm 2.50" / 64mm
Usable Height 10.5" / 266mm 13.5" / 343mm 13.7" / 348mm 13.7" / 348mm 14.9" / 378mm 22" / 559mm
Overall Height 18.2" / 462mm 21.5" / 546mm 24.5" / 622mm 24.5" / 622mm 24" / 610mm 30.5" / 775mm
Outer Diameter 8.8" / 222mm 10.3" / 260mm 14.5" / 368mm 14.5" / 368mm 17" / 432mm 17" / 432mm
Internal Diameter 6.5" / 165mm 8.3" / 210mm 11.4" / 289mm 11.4" / 289mm 14" / 356mm 14" / 356mm
Weight (Empty) 8lb / 4kg 12lb / 5.4kg 19lb / 9kg 19lb / 9kg 25lb / 11.4kg 31lb / 14kg
Weight (Full) 17lb / 8kg 31lb / 14kg 55lb / 25kg 55lb / 25kg 82lb / 37.2kg 120lb/54.4kg
*Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affected by the nature of container use, atmospheric conditions, and manufacturing tolerances. The Lab Series is designed for liquid storage and not suitable for specimens.

Packaging Content

  • Selected size MVE Lab Dewar
  • Cover
