Radwag MWLH 30 Electromagnetic Compensation Weighing Module, 30kg x 0.1g, WX-016-0110


live chat service provider
Radwag MWLH 30 Electromagnetic Compensation Weighing Module, 30kg x 0.1g, WX-016-0110
BrandRadwag MWLH 30
Product CodeRWG-WX-016-0110
2IN x 2OUT
Profibus
AvailabilityUsually ships in 5-7 business days
ConditionNew

MSRP : $5,982.00
$4,785.60
You Save 20%
Qty:

Product Description

Radwag MWLH 30 Electromagnetic Compensation Weighing Module, 30kg x 0.1g, WX-016-0110


Radwag MWLH 30 Electromagnetic Compensation Weighing Module, 30kg x 0.1g, WX-016-0110. Operation of professional MWLH electromagnetic high resolution modules is based on an electromagnetic digital converter. The MWLH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed. Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.

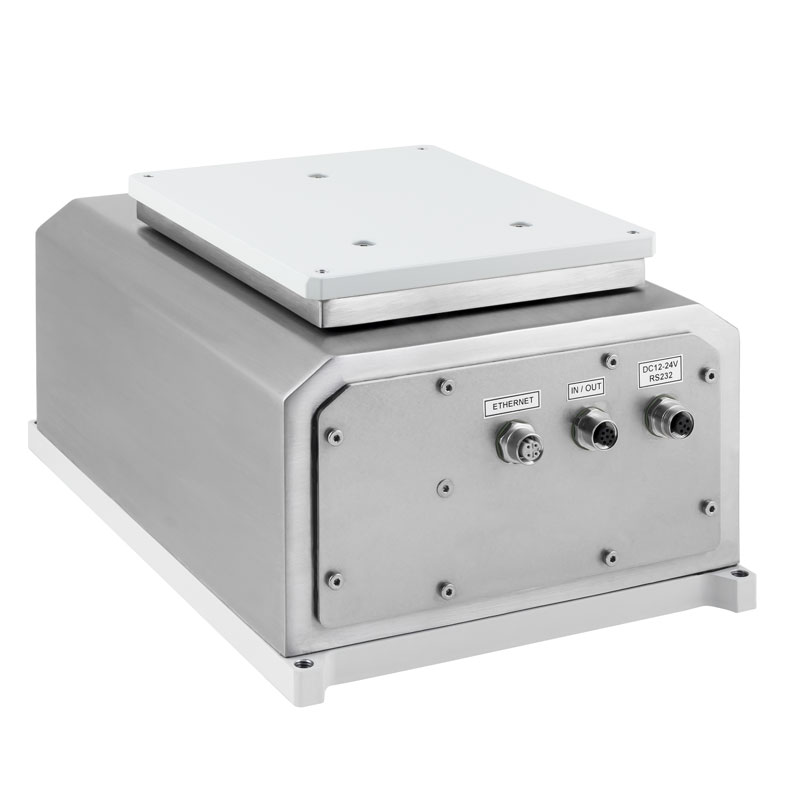

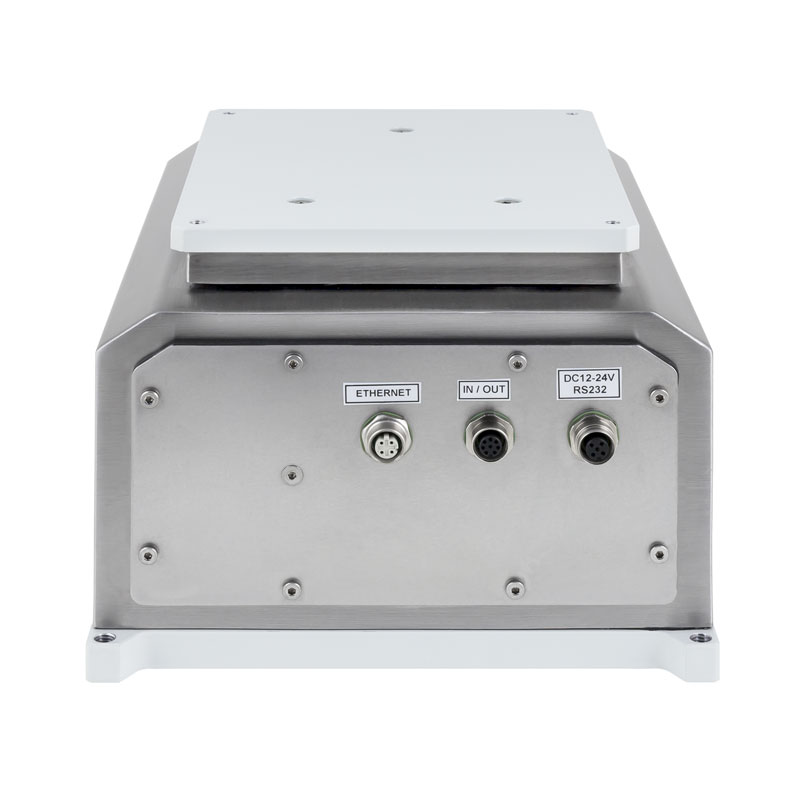

MWLH Weighing Module features integrated stainless steel housing with degree of protection classified as IP 65. It is connected to signal cables via quick coupling. The module base features four holes located in its corners allowing to fix the module to the base using M8 screws. MWLH Weighing Module comprises aluminium, painted plate with four threaded M6 holes, useful for fixing the weighing pan.

NOTE:We are an authorized distributor of RADWAG products. We carry the full line of RADWAG micro-balances, analytical, precision scales, moisture analyzers, replacement parts and accessories. We are located in Long Island New York. If you can not find any RADWAG product on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65),
  • Reading unit of 0,01 g,
  • Ease of adaptation to required usage area,
  • Cooperation with HY terminal,
  • Interfaces: RS 232, RS 485, Ethernet, 2xIN i 2xOUT, Profibus (option).

Specifications

Maximum capacity [Max] 30 kg
Minimum load 5 g
Preload range 3 kg
Readability [d] 0.1 g
Tare range -30 kg
Repeatability 0.1 g
Linearity 0.3 g
Stabilization time 2 s
Adjustment external
Protection class IP 65
Power supply 100 240 V AC 50 / 60 Hz
Operating temperature +10 +40 C
Relative humidity 15% 80%
Weighing pan dimensions 212174 mm
Device dimensions 341236164 mm

Warranty / Return Policy

Comes with 2 Years Manufacturer's Warranty
