Product Description

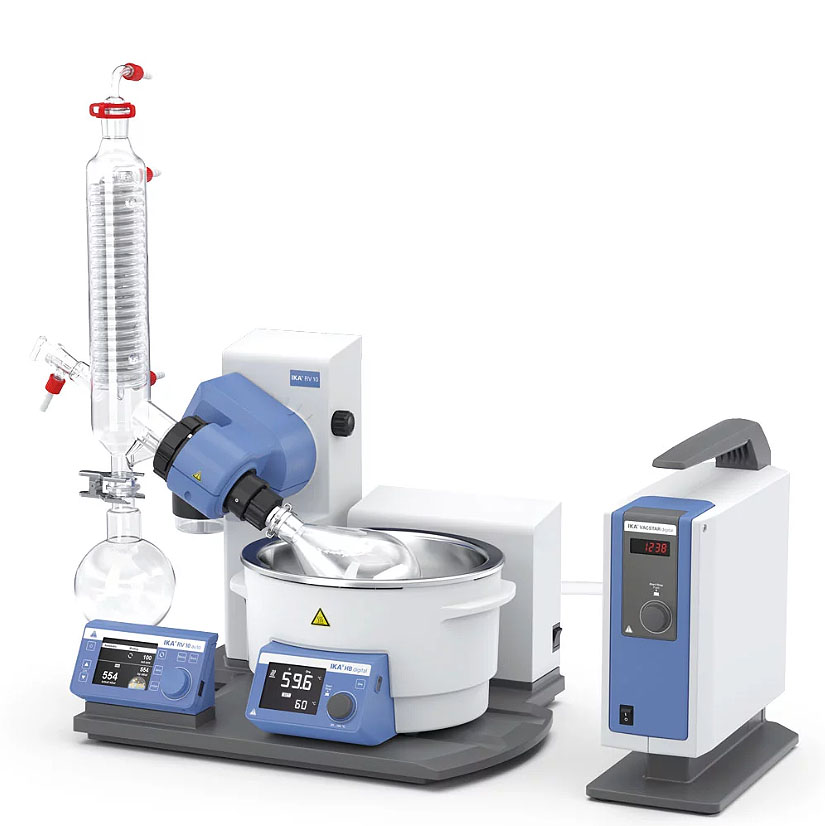

IKA RV 10 Auto PRO V C Rotary Evaporator w/Coated Glassware & Pump, 10005196


IKA RV 10 Auto PRO V C Rotary Evaporator w/Coated Glassware & Pump, 10005196. The completely revised RV 10 auto is the flagship of the IKA Rotation Evaporator product line. Its impressive features include an innovative handling concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards.

The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500 cm² cooling surface. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures.

Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier. Safety is ensured by the motorized lift with safety-stop function that automatically lifts the evaporation flask out of the heating bath in the case of power failure. Additional safety for users is provided by individually adjustable temperature safety circuits, protection against boiling dry, adjustable end-point recognition to prevent glass breakage, and a locking function. The receiving flask and the condenser are also available in coated versions.

The USB port or the RS-232 interface enable remote control with the IKA “labworldsoft” software package and an update option with the firmware update tool. The device comes complete with vacuum hoses and hose connectors for your in-house cooling water supply. The new IKA Vacstar digital included in the package is controlled directly from the drive unit of the RV 10 auto via the data cable provided.

NOTE:We are an authorized distributor of IKA Laboratory Equipment, parts and accessories. We carry the entire line of IKA magnetic stirrers, overhead stirrers, vortex mixers, homogenizers, rotary evaporators, lab reactors, parts and accessories. We are located in Long Island New York. If you can not find any IKA products, parts or accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • New: 4 l heating bath
  • automatic boiling point detection
  • integrated vacuum controller
  • integrated solvent library with 40 preset solvents and expansion option
  • bright, high-contrast, TFT, color-graphic control panel
  • universal safety heating bath
  • optimized heating bath volume for rapid achievement of working temperature
  • heating bath with ergonomic handles
  • temperature safety circuit
  • boil-dry protection
  • condenser with 1500 cm² cooling surface and low space requirements
  • evaporation flasks available with coated glass
  • intuitive handling concept with simple menu navigation
  • programming option for up to ten individual procedures
  • smooth start
  • right or left rotation
  • timer function
  • end-point recognition
  • push-off mechanism for tightly-fitting flasks
  • digital interfaces: USB port and RS-232 interface for remote control
  • multi-language operating system
  • automatic cooling water management
  • automatic ventilation
  • automatic heating bath management

Specifications

Type of cooling Vertical condenser
Cooling surface 1500 cm2
Speed range 5 - 300 rpm
Reversible direction of rotation yes
Speed tolerance set rotation speed < 100rpm 1 ±rpm
Speed tolerance set rotation speed > 100rpm 1 ±%
Lift Motor
Stroke 140 mm
Heat output 1350 W
Set temperature resolution 1 ±K
Filling volume max. 4 l
Vacuum controller integrated yes
Timer yes
Dimensions (W x H x D) 500 x 430 x 440 mm
Weight 52.65 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Analog output yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 100 W
Power input standby 3.3 W
