IKA ROTAVISC hi-vi Complete (for High Viscosity) Viscosity Meter Package, 25000312

IKA ROTAVISC hi-vi Complete (for High Viscosity) Viscosity Meter Package, 25000312
BrandIKA
Product CodeIKA-25000312
AvailabilityUsually ships in 5-7 business days
ConditionBrand New in Factory Packaging
MSRP : $2,998.00
$2,548.30
You Save 15%
Qty:

Product Description

IKA ROTAVISC hi-vi Complete (for High Viscosity) Viscosity Meter Package, 25000312

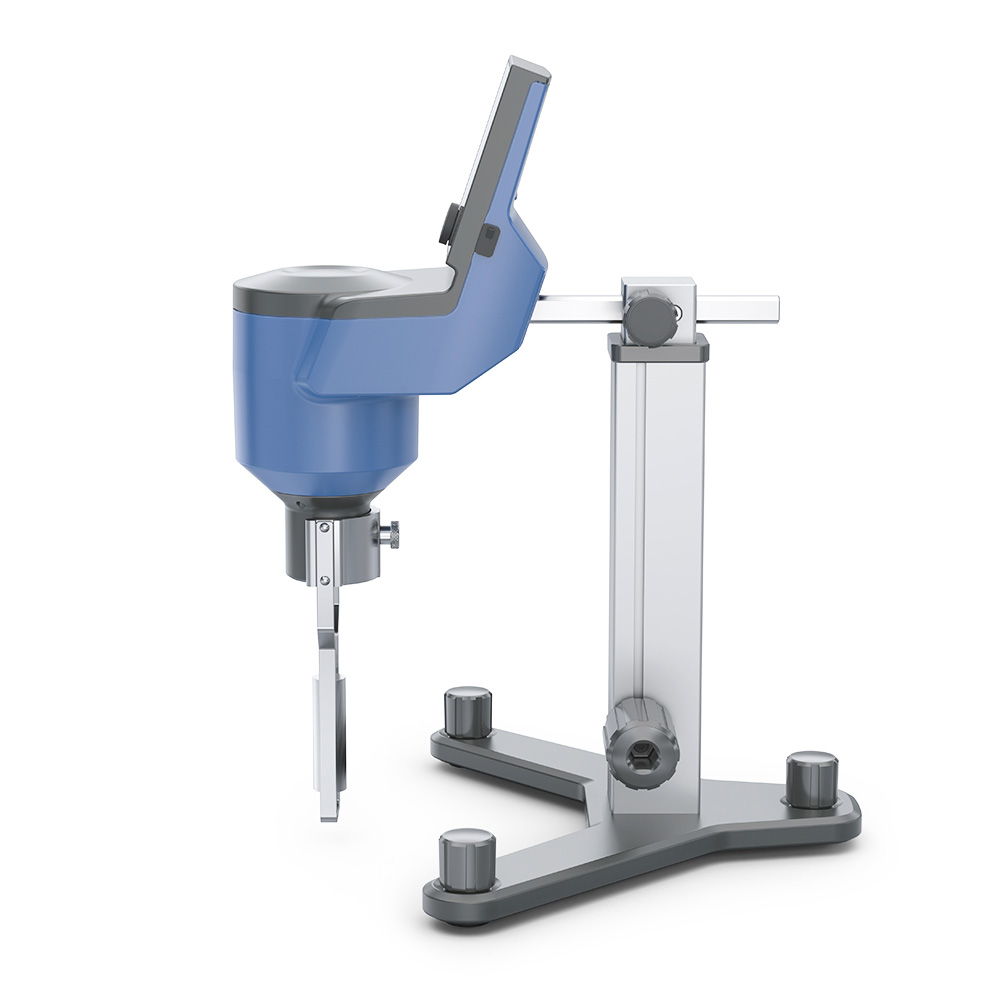

IKA ROTAVISC hi-vi Complete (for High Viscosity) Viscosity Meter Package, 25000312. The new ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set ( SP7- SP12), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand.

  • Easy to operate : The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
  • Highest measurement accuracy : The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.
  • Stepless speed : ROTAVISC is a viscometer, which offers stepless speed adjustment.
  • IKA Rotavisc lo-vi Complete : Viscosity measuring range: 200 - 80.000.000 mPas

NOTE:We are an authorized distributor of IKA Laboratory Equipment, parts and accessories. We carry the entire line of IKA magnetic stirrers, overhead stirrers, vortex mixers, homogenizers, rotary evaporators, lab reactors, parts and accessories. We are located in Long Island New York. If you can not find any IKA products, parts or accessories on our website, please contact us for pricing and availability. Our phone numbers are toll free 1-888-822 3336 or 631-803 2694. You can also send us an email to info@getmedonline.com or simply click on the "Ask Question" button on every product detail page. We will reply your inquiries as quickly as possible...

Features

  • Easy to operate
  • Highest measurement accuracy
  • Stepless speed
  • IKA Rotavisc hi-vi Complete

Specifications

Viscosity Measuring Range 80000000 mPas
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Spring torque 1.4374 mNm
Guard rail me-vi
Measuring spindle series SP set-2
Motor rating output 4.8 W
Overload protection yes
Direction of rotation right
Display TFT
Speed display TFT
Speed range 0.01 - 200 rpm
Setting accuracy speed 0.01 rpm
Speed control TFT
Torque display yes
Torque measurement yes
Timer yes
Timer display TFT
Time setting range 0.017 - 6000 min
Temperature measurement resolution 0.1 K
Working temperature display TFT
Connection for ext. temperature sensor PT 100
Graph function yes
Operating mode timer and continuous operation
Calibration option yes
Touch function yes
Pemitted density 9999 kg/dm3
Working temperature -100 - 300 C
Fastening on stand extension arm
Support rod diameter (with integrated fastening on stand) 16 mm
Telescope stand stroke 200 mm
Plug-in coupling () 12 mm
Basic container volume 600 ml
Stand Rotastand
Stroke max. 200 mm
Diameter 16 mm
Dynamic load 5 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible ambient temperature 0 - 40 C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS 232 interface yes
USB interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 24 W
Power input standby 0.06 W
DC Voltage 24 V=
Current consumption 1000 mA

Packaging Content

  • Rotavisc
  • Extension arm
  • Hexagon socket screw
  • Temperature sensor clamp
  • Screwdriver (AF = 4 mm) DIN ISO 2936
  • Temperature sensor
  • USB cable
  • User guide
  • Warranty card
  • Power supply unit
  • Guard rail / Spindle set (Rotavisc lo-vi)
  • Guard rail / Spindle set (Rotavisc me-vi/hi-vi)
  • Rotastand pillar
  • Rotastand base
  • Screw washer
  • Hexagon socket screw (M8)
  • Hexagon socket screw (M4)
  • Screwdriver (AF = 2.5 mm) DIN ISO 2936
  • Screwdriver (AF = 5 mm) DIN ISO 2936

Warranty / Return Policy

Comes with 2 Years Manufacturer's Warranty
